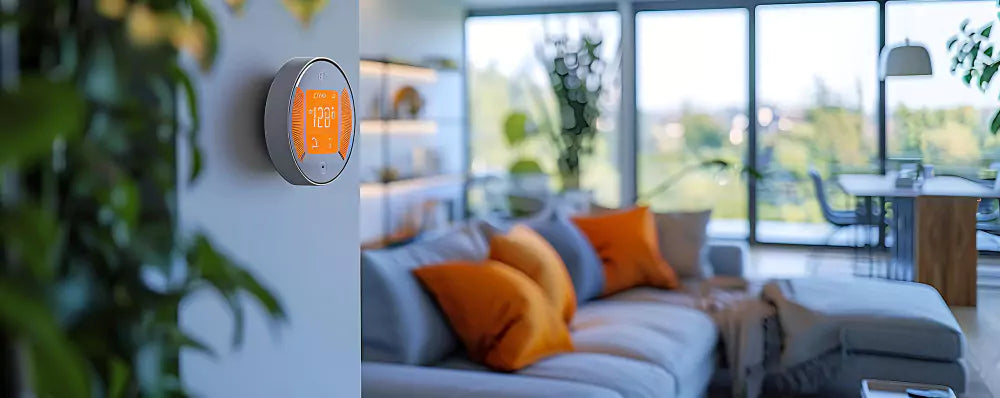

Smart home using Wi-Fi temperature and humidity sensors in different rooms, connected to a tablet for remote monitoring.

How Do Temperature and Humidity Sensors Work? A Complete Guide

0 comments

In today’s smart homes and workplaces, maintaining the right environment isn’t just about comfort—it’s about health, safety, and even savings. Temperature and humidity sensors are essential tools for maintaining and monitoring environmental conditions. But how exactly do these sensors work? How accurate are they? And how can you make sure yours are performing well?

In this post, we’ll break down everything you need to know about how temperature and humidity sensors work, their differences, accuracy, range, and how to keep them calibrated for reliable performance.

What Is the Working Principle of a Humidity Sensor?

A humidity sensor (or hygrometer) measures the amount of moisture in the air. It typically works based on one of three main principles:

  1. Capacitive Sensors – These are the most commonly used in home and commercial applications. A capacitive humidity sensor has a thin film polymer between two electrodes. As humidity changes, the dielectric constant of the polymer changes, which alters the capacitance. This change is then converted into a readable humidity value.

  2. Resistive Sensors – These measure humidity by the change in electrical resistance of a hygroscopic (moisture-absorbing) material. As the material absorbs more water, its resistance decreases, and this variation is interpreted as a humidity level.

  3. Thermal Sensors – These use two thermistors—one sealed in dry nitrogen and the other exposed to ambient air. By comparing the rate of heat loss between the two, the sensor calculates humidity. These are less common in household sensors.

Capacitive sensors are widely favored due to their low cost, small size, and solid performance in varying environmental conditions.

How Accurate Are Home Humidity Sensors?

The accuracy of home humidity sensors varies depending on quality and calibration. Most consumer-grade humidity sensors offer an accuracy of ±2% to ±5% RH (Relative Humidity).

That might not seem like a big difference, but it can matter in specific environments like:

  • Wine cellars where precise conditions are crucial.

  • Greenhouses where plant growth is sensitive to humidity swings.

  • Server rooms where too much moisture could cause condensation, and too little could lead to static electricity.

More advanced or professional-grade sensors (like those in the TempCube Pro) can offer tighter tolerances and better long-term stability.

What Is the Difference Between a Temperature Sensor and a Humidity Sensor?

While many modern devices include both sensors, they measure completely different aspects of the environment:

Feature

Temperature Sensor

Humidity Sensor

What it measures

Heat (degree of warmth or coldness)

Moisture in the air (Relative Humidity %)

Common Types

Thermocouples, thermistors, RTDs

Capacitive, resistive, thermal

Output

°C or °F

% Relative Humidity (RH)

Applications

HVAC, cooking, health, tech cooling

Weather monitoring, food storage, HVAC, indoor comfort

In combo devices, both sensors often feed into a microcontroller that logs or transmits the data, as seen in many WiFi-based environmental monitors.

What Is the Range of a Humidity Sensor?

The measurement range of most humidity sensors is 0% to 100% RH, but not all sensors perform accurately across that full range.

  • Typical consumer-grade sensors reliably measure from 20% to 80% RH.

  • High-end models or industrial sensors can handle the full spectrum with higher accuracy and better durability in extreme conditions.

For indoor use, this is usually more than sufficient, since most indoor RH levels fall between 30% and 60%.

How Can You Calibrate a Temperature and Humidity Sensor?

Even the best sensors can drift over time. Calibration helps keep the readings accurate and trustworthy. Here's how to do it:

1. How Do I Know If My Humidity Sensor Is Accurate?

The easiest way to test accuracy is the salt test:

  • Place your sensor in a sealed container with a small open dish of table salt and water. This results in a 75% relative humidity level at room temperature.

  • Leave it for 6–8 hours.

  • If your sensor doesn’t read close to 75%, it may need calibration.

Some sensors also have factory calibration and auto-correction algorithms, especially in higher-end models.

2. How Often Should You Calibrate a Hygrometer?

  • Home use: Once every 6 to 12 months is generally enough.

  • Critical environments (labs, food storage, tech equipment): Every 3 to 6 months.

  • Signs of drift: If readings seem consistently off compared to other trusted instruments or conditions, recalibrate.

Some advanced sensors support software calibration via apps or cloud platforms, making recalibration a quick and painless process.

Final Thoughts

Temperature and humidity sensors might be small, but they serve a big purpose. Whether you’re protecting equipment, optimizing home comfort, or preserving valuable items, understanding how these sensors work—and how to maintain them—gives you the power to control your environment.

Keep in mind:

  • Capacitive sensors are the go-to for home and smart applications.

  • Accuracy varies by device quality—check specs before you buy.

  • Regular calibration ensures long-term reliability.

  • Use practical methods like the salt test to check accuracy at home.

If you're looking for an easy-to-use, reliable sensor that lets you monitor conditions remotely, products like the TempCube WiFi Temperature & Humidity Monitor are worth considering. With built-in calibration features and real-time alerts, it brings peace of mind—one degree and percent at a time.
